SKU: C24451324V

Q-SERIES DIFFUSED (16 LEDs)

  • 5 Year Warranty
  • Made in USA

  • Worldwide Delivery

Technical Data

Size

7" x 7" / 17.8 x 17.8cm

Weight

6.6 Lbs / 3kg

Optics

FLOOD DIFFUSED

Number of LEDs

16

Amp Draw

8.8A

Watts

123W

Input Voltage DC

9-36V

*Raw Lumens

12672Lm

Lux @ 10m

77Lx

Beam Distance @1Lux

88m

Beam Distance @.25Lux

176m

Color Temperature

5700K

Connector

Built-in Deutsch DT-2 (2-pin)

Shock / Vibration

SAE J575 Complian

IP Rating

IP68 Compliant

Lens

Impact Resistant Polycorbonate Lens

Body / Housing

High-Grade Aluminum Alloy / Durable UV Resistant Powder Coat

RFI/EMI Protection

YES

Operating Temperatures

-40°F to +145°F / -40°C to +60°C

Lifespan

50,000 plus hours

Warranty

5 years

Reverse Polarity Protection

YES

Over Voltage Protection

YES

Dimensions

5 Year Warranty

Made in USA

Worldwide Delivery

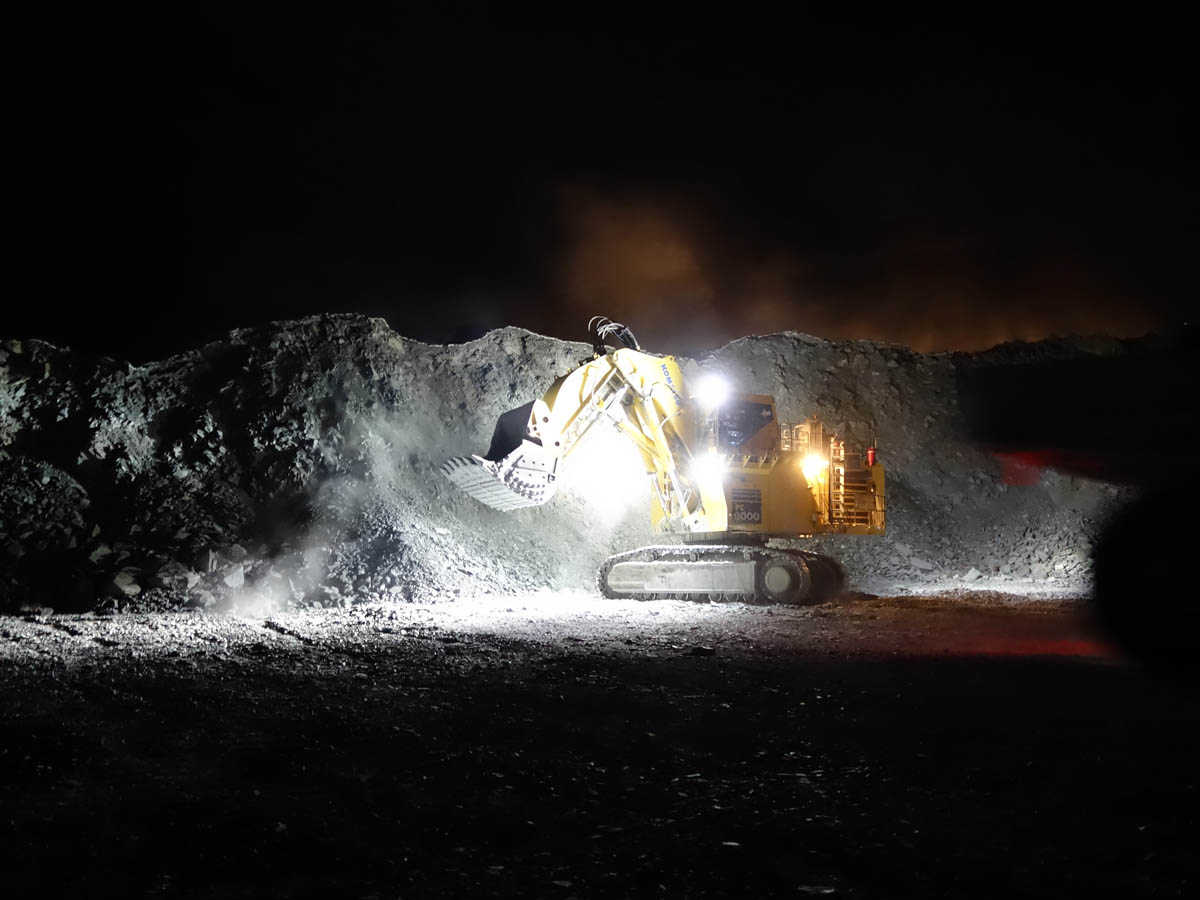

The Q-Series is designed and built to withstand the harshest working environments imaginable. Constructed of the toughest and most durable materials available, including a double-pass TIG-welded stainless steel bracket with vibration isolator, the Q-Series provides reliable, powerful LED light and is tough enough to withstand mining, agriculture, construction, and the oil and gas industries. The rugged construction also makes it well suited to extreme environments. If the application is severe, the Q-Series is the ultimate lighting solution.

Raw Lumens

7040Lm

Watts

123W

Lux @ 10m

77Lx
